AC Leakage current transformers
Name
AC Leakage current transformers
Features

   ●    Center hole-through, easy installation,on the safe side.

   ●    Metal casing,better capacity of resisting outside surroundings.

   ●    High-sensitivity/accuracy,good linearity.

   ●    Two series for selection: passive and active

Applications

   ●    Used in high voltage electric power equipment insulation monitoring plant, which is stalled in transformers station.Provide exact measurement for mA leakage current of high voltage power equipment, such as transformers sleeve, current transformers

Specifications

   ●    Frequency:50Hz

   ●    Rated current:10mA,20mA,30mA

   ●    Measuring range:0.5~700mA

   ●    Output signal:mV/mA

   ●    Amplitude error:±0.1%

   ●    Phase error:±1'

   ●    Environmental temperature:-30+75Influence on phase error by temperature change is1’

   ●    Diameter of primary center hole:Φ13mm,25mm, 40mm, 50mm

Typical Products
Photograph   Part
Number
Rated
Input
Turn
Ratio
Frequency
      (Hz)
Secondary
Burden
Resistance
(Ohms)
Accuracy
Class
Outline
Dimensions
(mm)
pdf
    TA25L    10~1001000:1
2000:1

    50/60    00.02
0.05

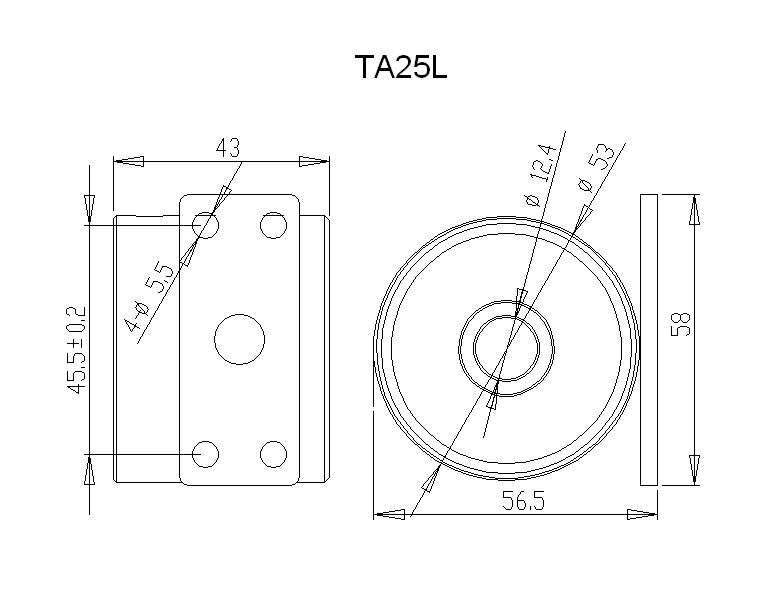

12.4-58-43-56
    TA25BL    10~1001000:1
2000:1

   50/60    00.02
0.05

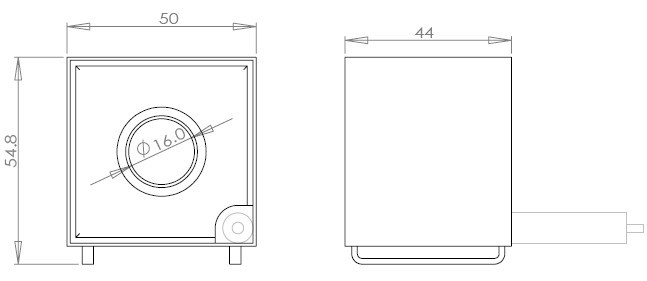

16.0-50-44-54.5
    TA25CL    10~1001000:1
2000:1

    50/60   00.02
0.05

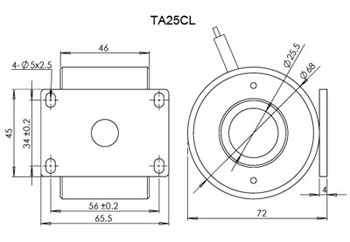

25.5-68-65.5-72
    TA25DL    10~1001000:1
2000:1
    50/60    00.02
0.05

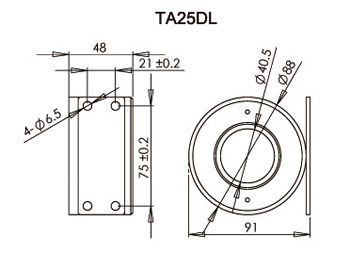

 40.5-88-48-91
    TA25EL     10~1001000:1
2000:1
    50/60    00.02
0.05

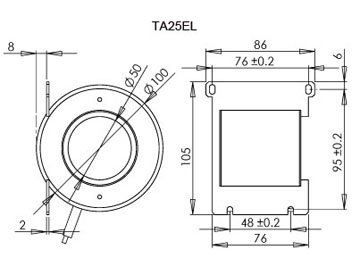

50-105-86-100
