Electricity Meter Current Transformers
Name
Electricity Meter Current Transformers
Features

   ●    Low cost

   ●    More than 30 standard sizes

   ●    Small size

   ●    High accuracy,wide linear range,good consistency

   ●    Terminal: PCB Mounted or Lead

   ●    Toroidal Nanocrystalline and Nickel Alloy cores available

Applications

   ●    For applications that required high  precision and minimal phase angle error watt-hour metre ect. electric energy measurement device

Specifications

   ●    Exterior Material: PBT Resin UL flame retardant rating 94-V0

   ●    Interior Insulation:Epoxy Encapsulated

   ●    Isolation Current:2500 Vrms for 1 minute

   ●    Dielectric Resistance:1000 M Ohms @ 500 Vdc

   ●    Surge Withstand: 5000V(1.2/50us standard shock wave)

   ●    Operating Temperature:-25 to +55℃,-40 to +85℃ optional

   ●    Frequency:50 to 400 Hz

   ●    Accuracy Class:as defined in IEC 61869-2 Part 2 Current Transformers Class 0.1,0.2

   ●    RoHS Compliant



RFQ SPEC Sheet

Typical Products

Photograph

Part Number

Rated (max)
Input
Current (A)

Ratio

Frequency

(HZ)

Secondary
 Burden
Resistance
(Ohms)

Accuracy
Class

Outline
Dimensions
(mm)

Output
Mold

pdf

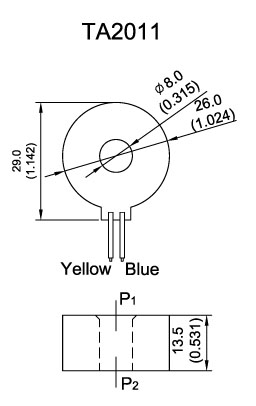

TA2011.jpg TA2011

5(20)
5(50)
10(40)
15(60)

1000:1
1500:1
2000:1

50-400

20

0.1
0.2

ID-L-W-H
8.0
26.0-13.5-28.6

pin

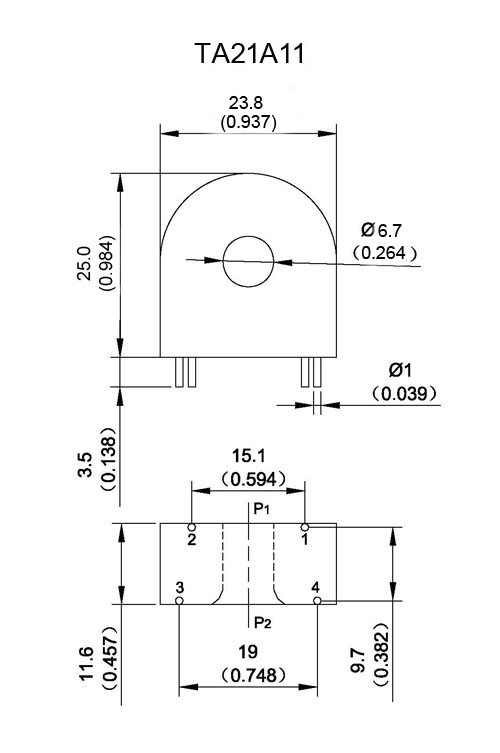

TA21A11.jpg TA21A11 5(20)
5(50)
10(40)
15(60)

1000:1
2000:1
2500:1

50-400

40

0.1
0.2

ID-L-W-H
6.7
23.5-11.5-25.0

 lead
/pin

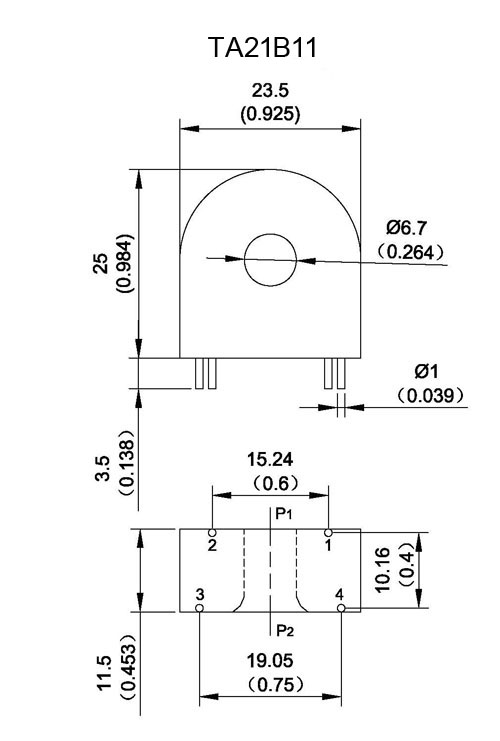

TA21B11.jpg TA21B11 5(20)
5(50)
10(40)
15(60)

1000:1
2000:1
2500:1

50-400

40

0.1
0.2

ID-L-W-H
6.7
23.5-11.5-25.0

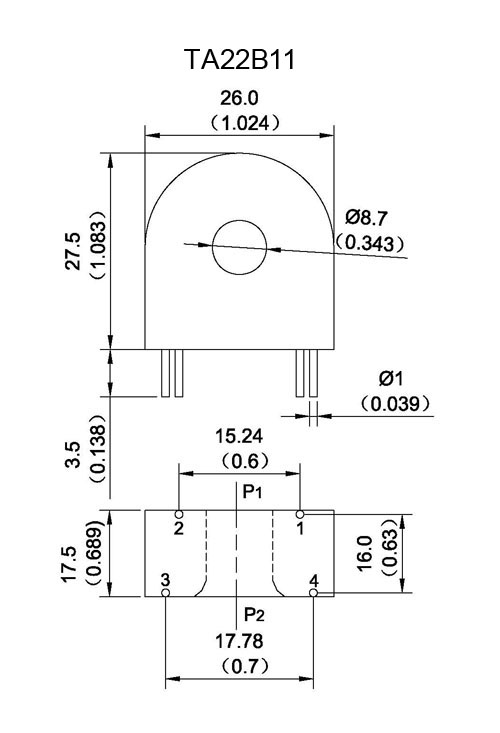

TA22B11.jpg TA22B11

5(20)
5(50)
10(40)
20(80)

1000:1
2000:1
2500:1

50-400

50

0.1
0.2

ID-L-W-H
8.7
26.0-17.5-27.5

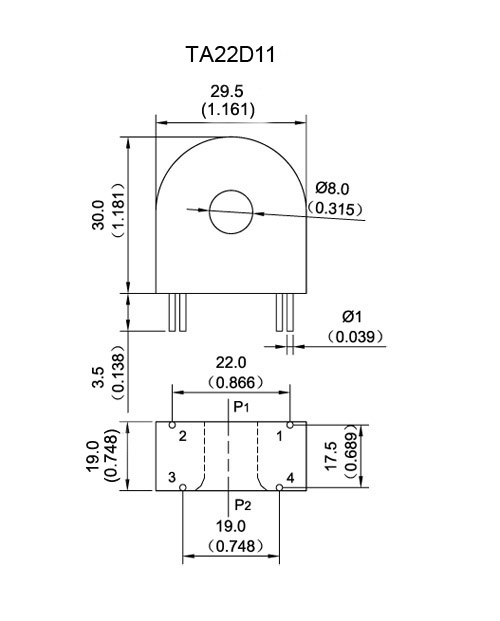

TA22D11.jpg TA22D11

5(50)
10(40)
10(60)
20(80)

1000:1
2000:1
2500:1

50-400

50

0.1
0.2

ID-L-W-H
8.0
19.5-18.5-30.0

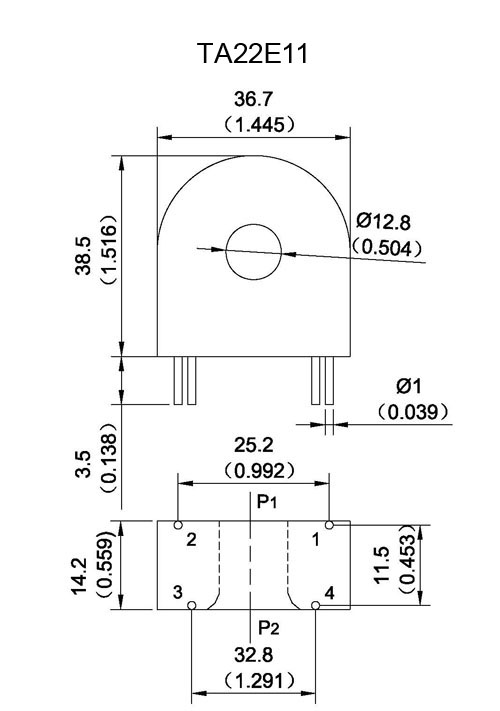

TA22E11.jpg TA22E11

5(50)
10(60)
10(100)
20(120)

1000:1
2000:1
2500:1

50-400

50

0.1
0.2

ID-L-W-H
12.8
36.7-14.2-38.5

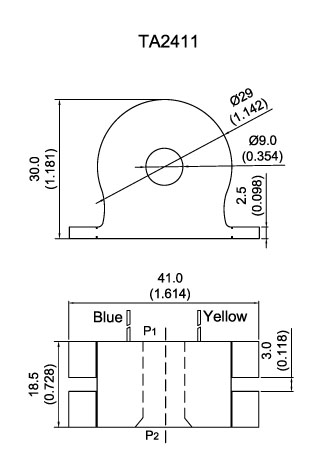

TA2411.jpg TA2411

5(50)
10(40)
20(80)
20(100)

1000:1
2000:1
2500:1

50-400

50

0.1
0.2

ID-L-W-H
9.0
41.0-18.5-30.0

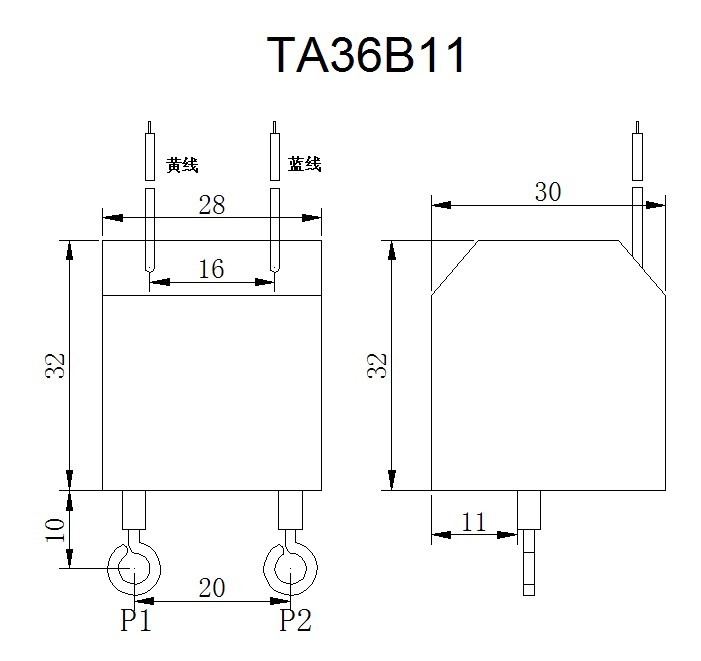

TA36B11.jpg TA36B11 1.5(6)

150:1
250:1
300:1
1000:1

50-400

40

0.1
0.2

L-W-H
28.0-30.0-32.0


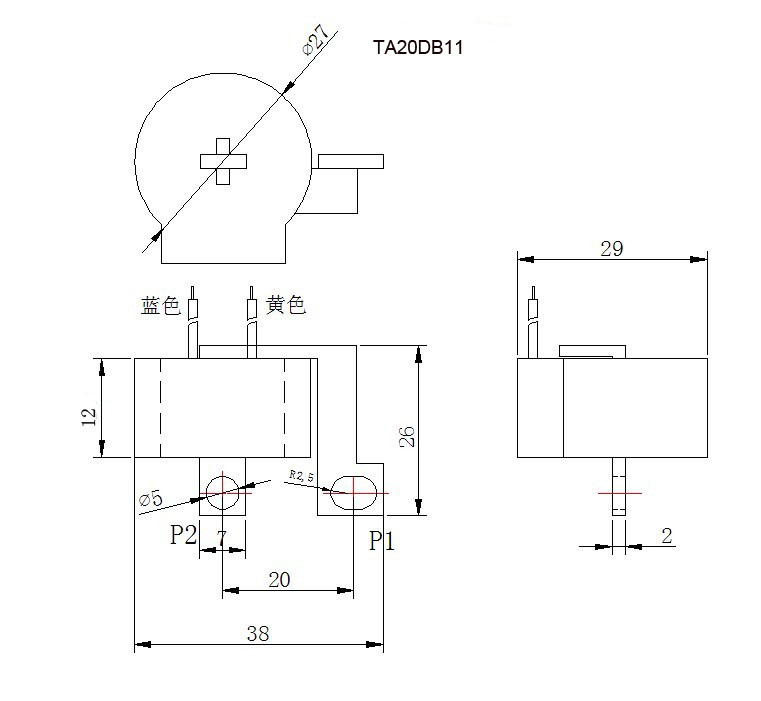

TA20DB11.jpg TA20DB11

5(20)
5(50)
10(40)
15(60)

1000:1
1500:1
2000:1

50-400

40

0.1
0.2

L-W-H
38.0-12.0-29.0

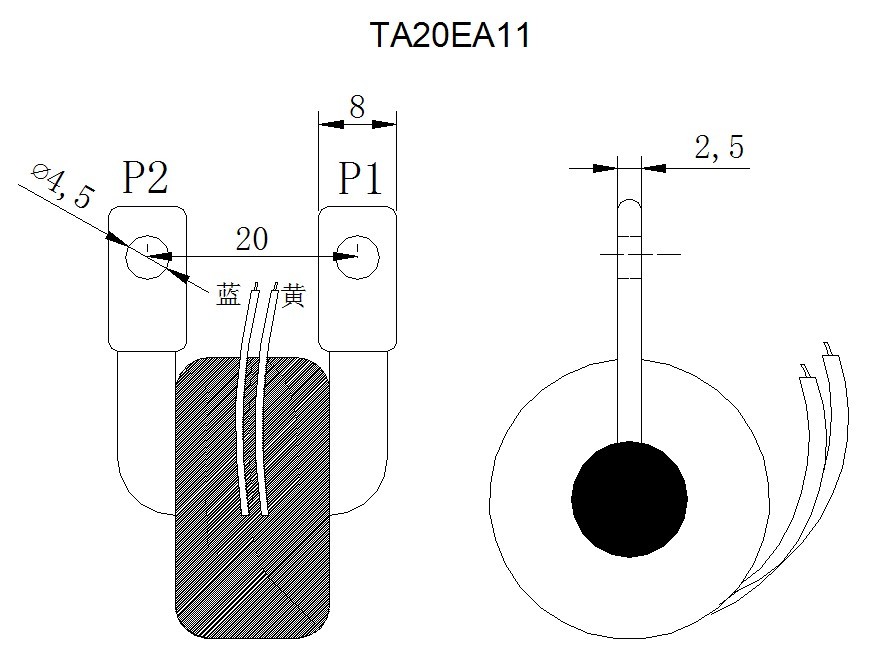

TA20EA11.jpg TA20EA11

5(20)
5(50)
10(40)
15(60)

1000:1
1500:1
2000:1

50-400

40

0.1
0.2

L-W-H
45.0-28.0-29.0

Photograph

Part Number


Rated (max)
Input/Output
Current (A)

Frequency
(Hz)

Secondary
 Burden Resistance
(Ohms)

Accuracy
Class

Outline Dimensions
(mm)

pin

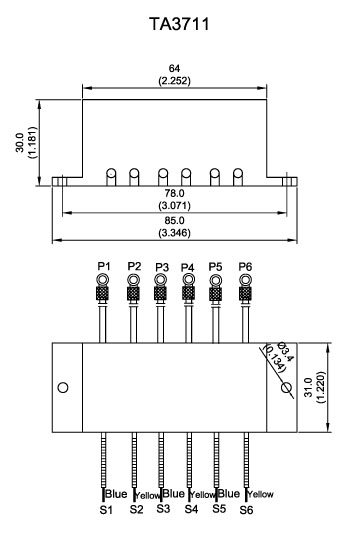

TA3711.jpg TA3711 Input:1.5(6)
Output:5mA,6mA,10mA
50-400

40

0.1
0.2

L-W-H
85.0-31.0-33.0

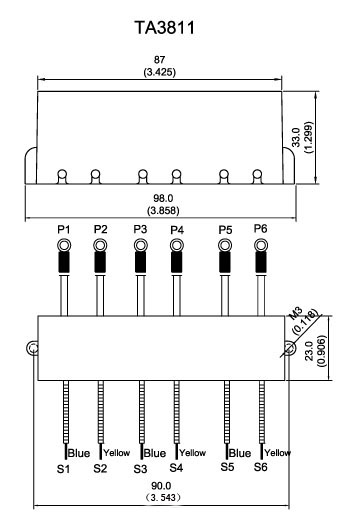

TA3811.jpg TA3811 Input:1.5(6)
Output:5mA,6mA,10mA
50-400

40

0.1
0.2

L-W-H
98.0-23.0-33.0

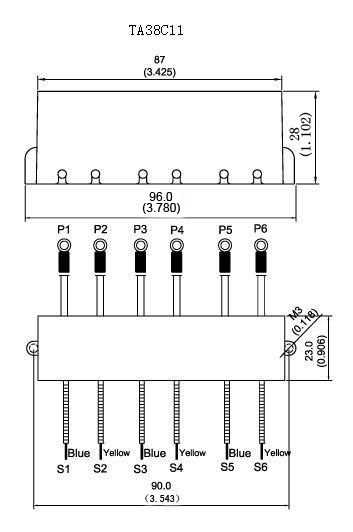

TA38C11.jpg TA38C11 Input:1.5(6)
Output:5mA,6mA,10mA
50-400

40

0.1
0.2

L-W-H
96.0-23.0-28.0
