Current Transformers S Series Split Core Current Transformers
Name
Current Transformers S Series Split Core Current Transformers
Features

   ●    Low cost

   ●    split core design,safer,easier installation, portable

Applications

   ●    Measures AC current flow to electric motors,lighting,air condition equipment,etc. Compatible with HVAC temperature control,power management,building automation systems.

Specifications

   ●     Rated output:0.333Vac

   ●     Accuracy:±1% from 10% to 130% of rated current

   ●    Phase Angle:less than 2 degrees at 50% of rated current

   ●    Insulation Voltage:600Vac

   ●    Maximum Primary Voltage:5000Vac(Insulated Conductor)

   ●    Operating Temperature:-15℃ƒto 50℃.

   ●    Case Material:ABS Resin UL flame retardant rating 94V-O

   ●    Frequency Range:50/60Hz

   ●    Leads:5Foot(1.5m),UL 1015,Twisted Pair,0.34 mm2(22AWG)

   ●    UL&CE recognized.

Typical Products
PhotographPart NumberRated
Input/output
Frequency
(Hz)
Accuracy
Class
Outline
Dimensions
(mm)
pdf

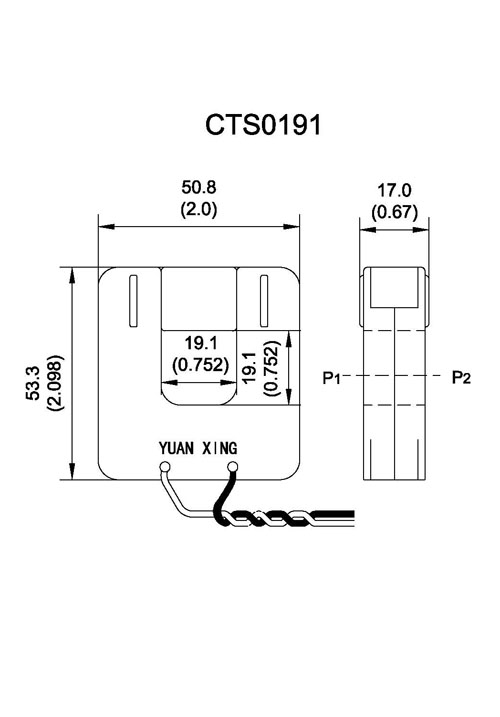

CTS0191Input:5,10,30,50,75,100,150,200A
Output:0.333V
50 to 4001.0L-W-H
50.8-53.3-17.0

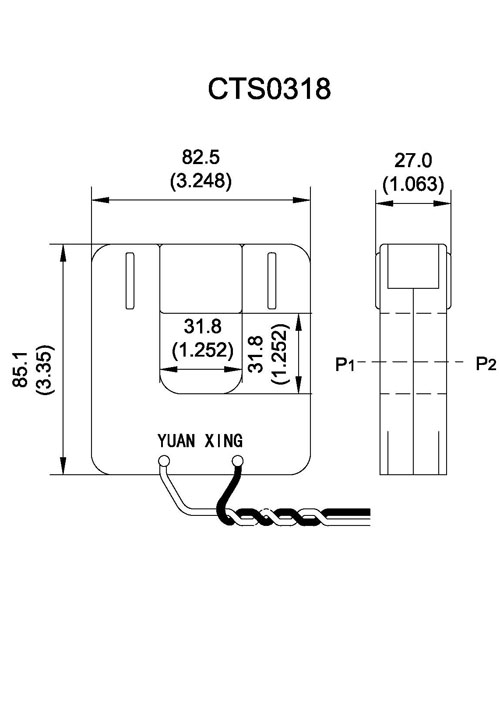

CTS0318Input:75,100,150,200,300,400,600A
Output:0.333V
50 to 4001.0L-W-H
82.5-85.1-27.0

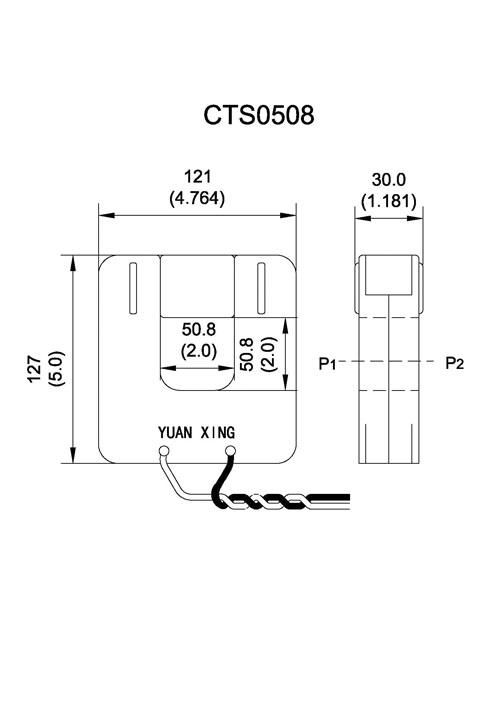

CTS0508

Input:100,200,300,600,800,1000,1500A

Output:0.333V

50 to 4001.0L-W-H
121.0-127.0-30.0

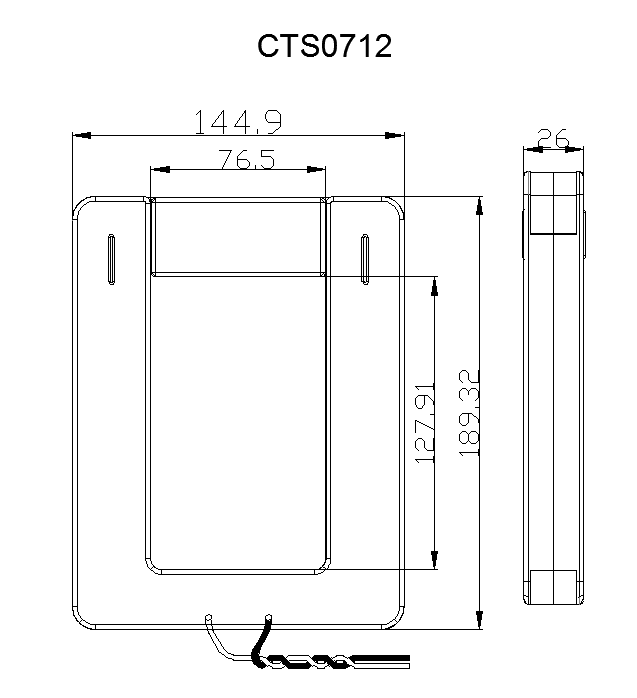

CTS0712

Input:600,800,1000,1500,2000,2500,

3000A

Output:0.333V

50 to 4001.0L-W-H
190-145-27.6
